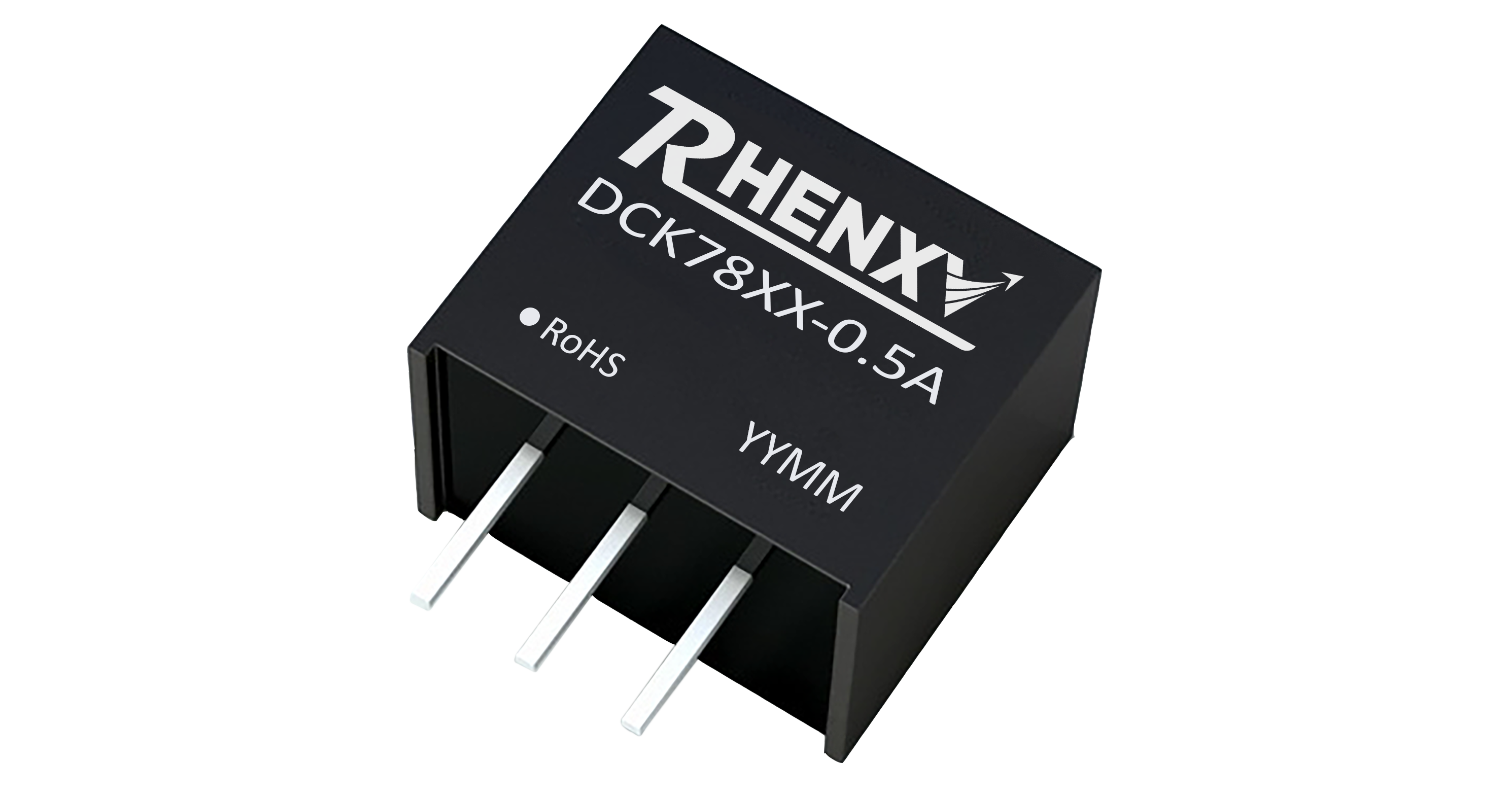

DCK7803-A

DCK7803-A

Wide voltage input, output 500mA, non isolated / stabilized / single output / SIP3 packaging.

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2MA
  • Ripple as low as 30mVp-p
  • The pins are compatible with the LM78xx series and can be packaged with straight or curved pins
Datasheet

Wide voltage input, output 500mA, non isolated / stabilized / single output / SIP3 packaging.

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2MA
  • Ripple as low as 30mVp-p
  • The pins are compatible with the LM78xx series and can be packaged with straight or curved pins

Models in Series

ModelPowerInputOutputDatasheet
DCK7803-0.5A W24 VDC3.3 VDCDownload
DCK7805-0.5A W6.5-36 VDC5 VDCDownload
DCK7809-0.5A W24 VDC9 VDCDownload
DCK7812-0.5A W24, 12 VDC12, -12 VDCDownload
DCK7815-0.5A W24, 12 VDC15, -15 VDCDownload
