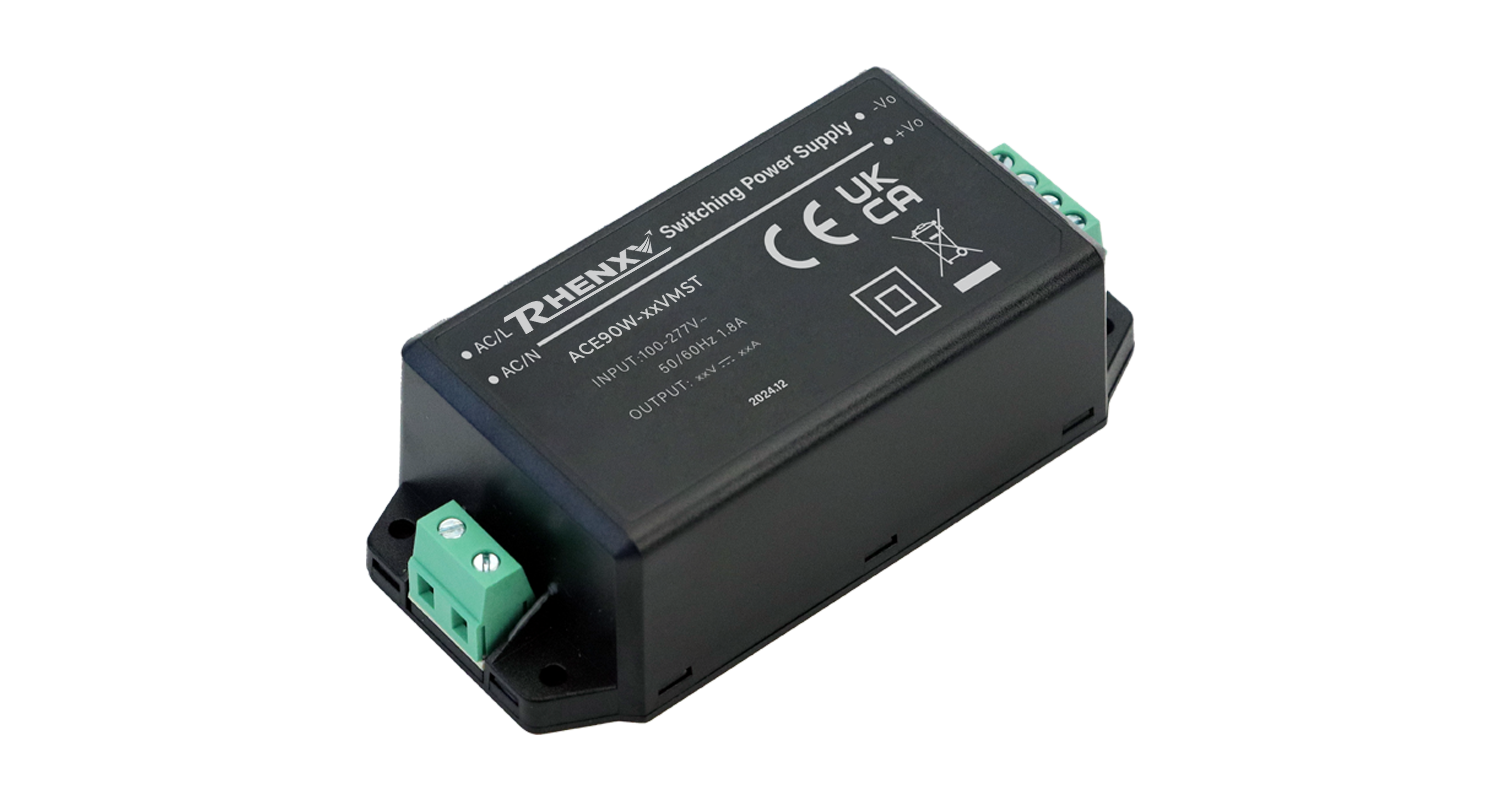

ACE90W-VMST

ACE90W-VMST

ACE90W is a 90W miniature (87*52*30mm) AC-DC module type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305VAC.

  • Universal AC Input/ Full Range
  • No load power consumption<0.15W
  • Wide operating temperature range -30~85ā„ƒ
  • High efficiency up to 91.5%
  • Protections: Short circuit/Over load/Over voltage
  • Isolation Class II
  • 3 years warranty
Datasheet

ACE90W is a 90W miniature (87*52*30mm) AC-DC module type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305VAC.

  • Universal AC Input/ Full Range
  • No load power consumption<0.15W
  • Wide operating temperature range -30~85ā„ƒ
  • High efficiency up to 91.5%
  • Protections: Short circuit/Over load/Over voltage
  • Isolation Class II
  • 3 years warranty

Models in Series

ModelPowerInputOutputDatasheet
ACE90W-12VMST 80.4 W85-305 VAC / 120-430 VDC12 VDCDownload
ACE90W-15VMST 85.05 W85-305 VAC / 120-430 VDC15 VDCDownload
ACE90W-24VMST 90 W85-305 VAC / 120-430 VDC24 VDCDownload
ACE90W-48VMST 90.2 W85-305 VAC / 120-430 VDC48 VDCDownload
