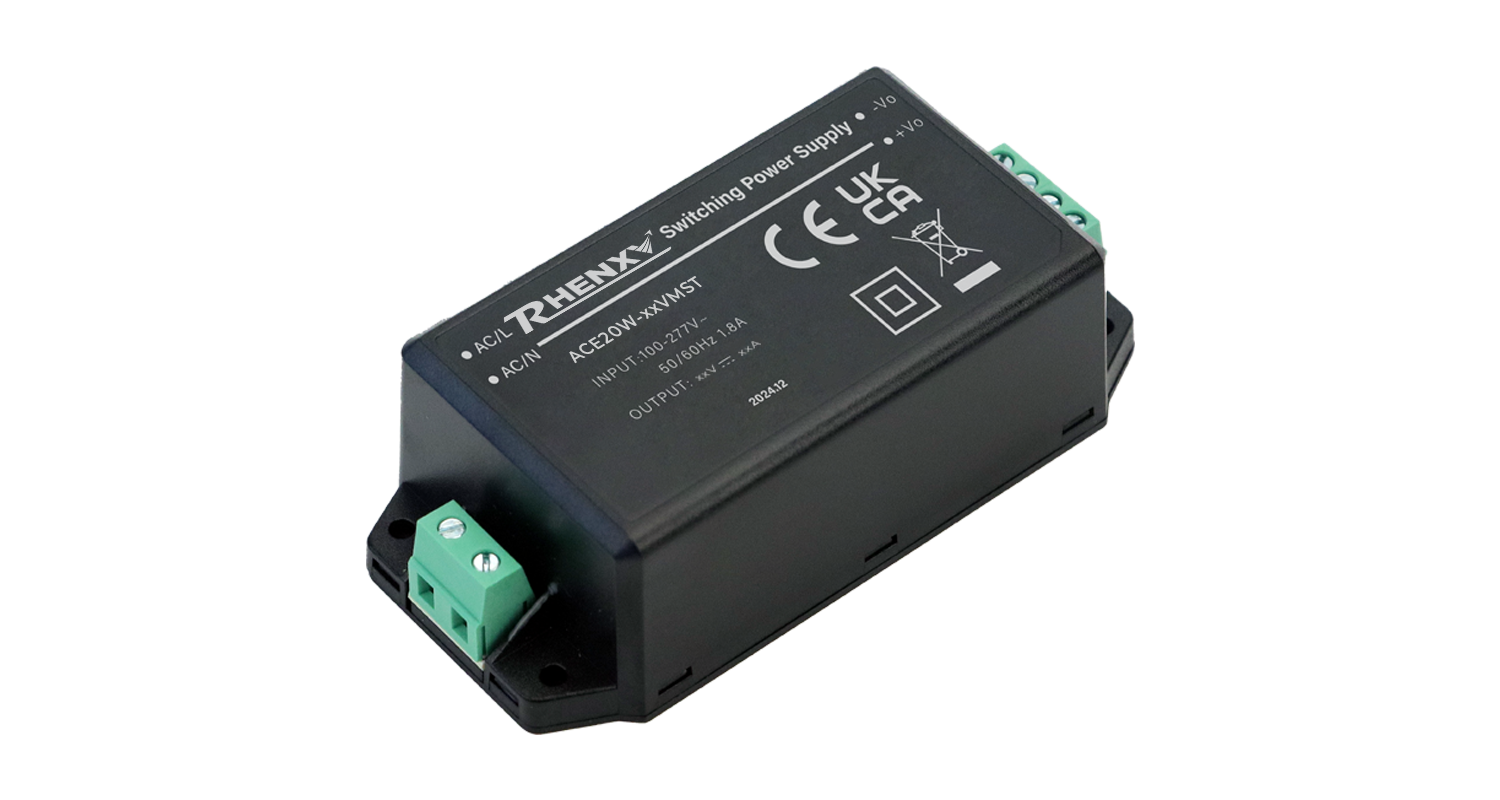

The ACE20W-xxVM series is a power system suitable for wireless networks, telecommunications/data communication, power systems, industrial control systems, measuring instruments, and intelligent fields. Suitable for designs that require large input range fluctuations, power isolation, small board space, and modular product functionality to improve product reliability
The ACE20W-xxVM series is a power system suitable for wireless networks, telecommunications/data communication, power systems, industrial control systems, measuring instruments, and intelligent fields. Suitable for designs that require large input range fluctuations, power isolation, small board space, and modular product functionality to improve product reliability
| Model | Power | Input | Output | Datasheet |
|---|---|---|---|---|
| ACE20W-03VMST | 14.85 W | 85-305 VAC / 100-430 VDC | 3.3 VDC | Download |
| ACE20W-05VMST | 20 W | 85-305 VAC / 100-430 VDC | 5 VDC | Download |
| ACE20W-09VMST | 20 W | 85-305 VAC / 100-430 VDC | 9 VDC | Download |
| ACE20W-12VMST | 20 W | 85-305 VAC / 100-430 VDC | 12 VDC | Download |
| ACE20W-15VMST | 20 W | 85-305 VAC / 100-430 VDC | 15 VDC | Download |
| ACE20W-24VMST | 20 W | 85-305 VAC / 100-430 VDC | 24 VDC | Download |
ACE05W-xxV is a 5W miniature (25.4*25.4*17.6mm) AC-DC module-type power supply, ready to be soldered…
View Series
ACE05W-xxVM is a 5W miniature (46.08*25.78*21.7mm) AC-DC module type power supply, ready to be solde…
View Series
ACE05W-xxVM is a 5W miniature (46.08*25.78*21.7mm) AC-DC module type power supply, ready to be solde…
View Series
ACE10W-xxV series is super small size up to 1.57*1 inch, adopting the full range: 85-305VAC/100-430V…
View Series
