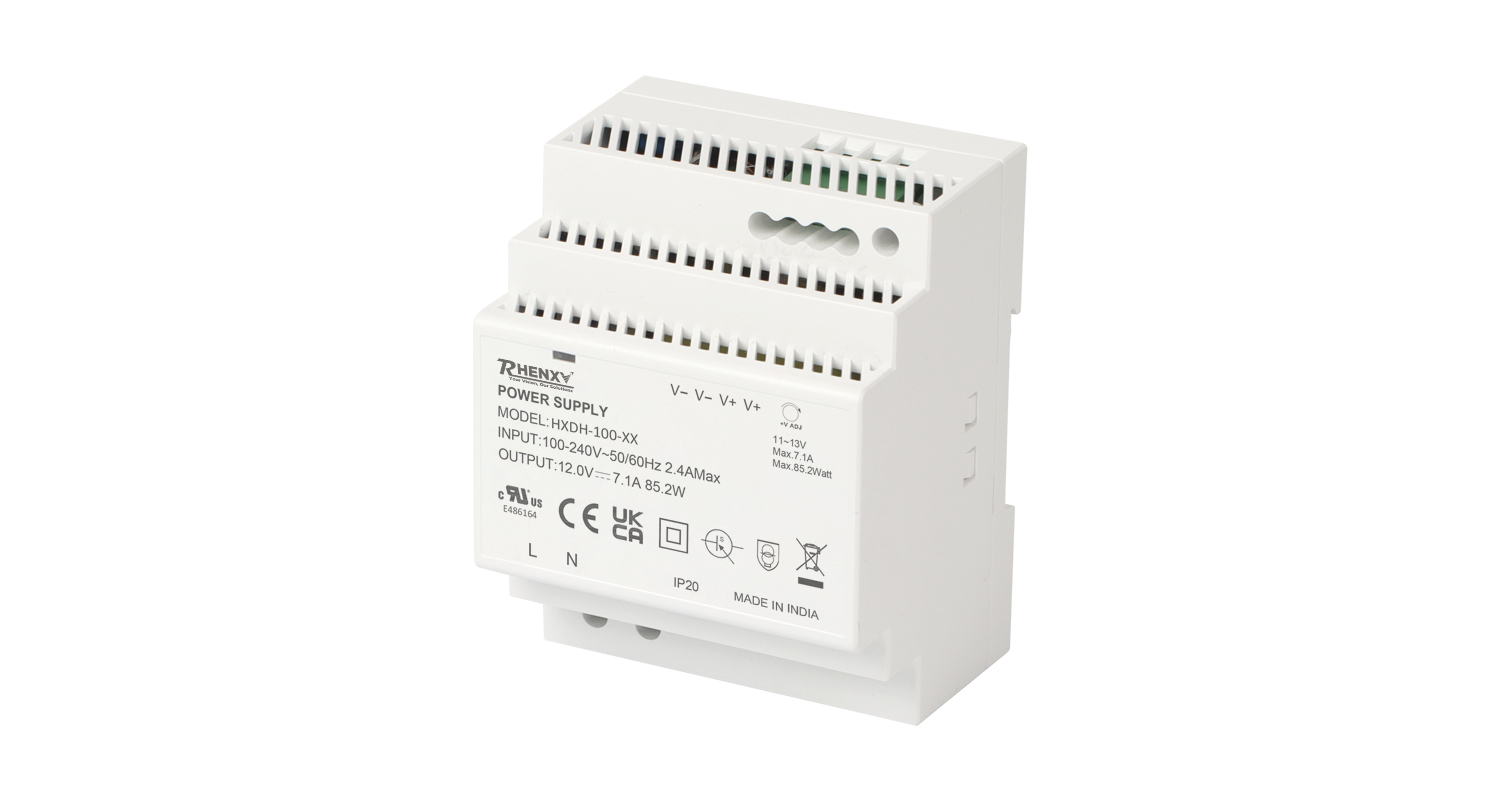

HXDH-100 is a step shape power family are designed with ultra-slim plastic housing and for full range. The series are isolation Class II Level, achieving high efficiency and low no-load power consumption. They provide adjustable DC output voltage. The good performance can be used for building automation, household and industrial control systems etc.
HXDH-100 is a step shape power family are designed with ultra-slim plastic housing and for full range. The series are isolation Class II Level, achieving high efficiency and low no-load power consumption. They provide adjustable DC output voltage. The good performance can be used for building automation, household and industrial control systems etc.
| Model | Power | Input | Output | Datasheet |
|---|---|---|---|---|
| HXDH-100-12 | 85.2 W | 90-264 VAC / 120-370 VDC | 12 VDC | Download |
| HXDH-100-15 | 97.5 W | 90-264 VAC / 120-370 VDC | 15 VDC | Download |
| HXDH-100-24 | 100 W | 90-264 VAC / 120-370 VDC | 24 VDC | Download |
| HXDH-100-48 | 100 W | 90-264 VAC / 120-370 VDC | 48 VDC | Download |
ACE05W-xxV is a 5W miniature (25.4*25.4*17.6mm) AC-DC module-type power supply, ready to be solderedā¦
View Series
ACE05W-xxVM is a 5W miniature (46.08*25.78*21.7mm) AC-DC module type power supply, ready to be soldeā¦
View Series
ACE05W-xxVM is a 5W miniature (46.08*25.78*21.7mm) AC-DC module type power supply, ready to be soldeā¦
View Series
ACE10W-xxV series is super small size up to 1.57*1 inch, adopting the full range: 85-305VAC/100-430Vā¦
View Series
Datasheet
