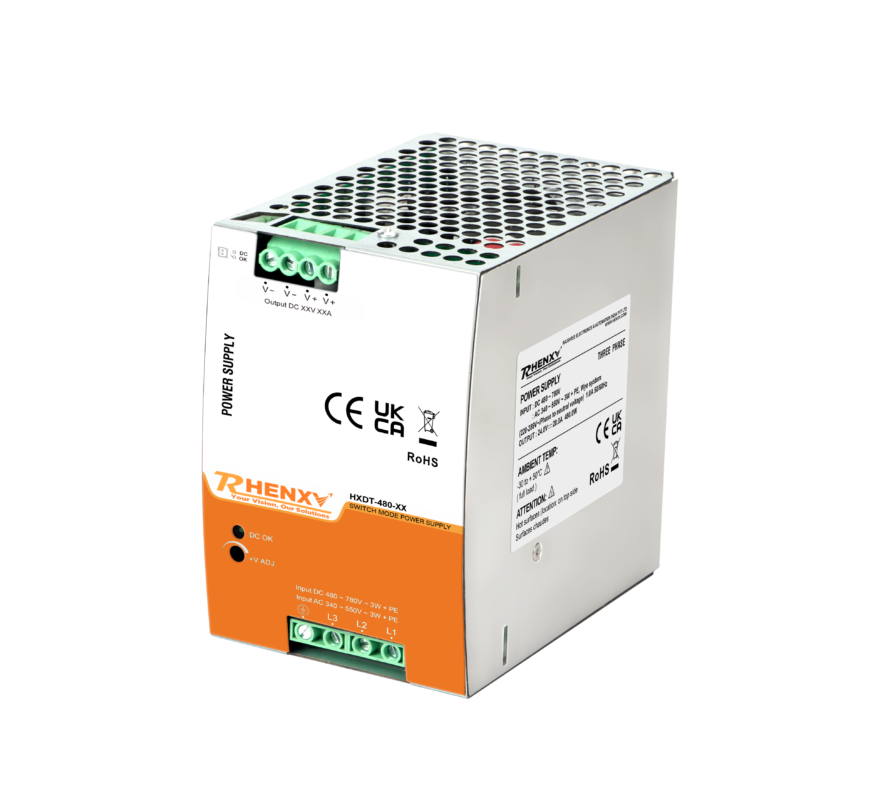

HXDT-480

HXDT-480 series are designed with metal housing and for three phase system with wide range from 340VAC To 550VAC. The series offer built-in constant current limiting circuit and active PFC function, and operating in wide temperature range. They are suitable for industrial-related applications such as industrial control, semiconductor fabrication equipment, and factory automation etc.

• 3-Phase 340~550VAC Wide Range Input (2-phase operation possible)
• Protection: Short Circuit/Overload/Over Voltage/Over Temperature
• Built-in Constant Current Limiting Circuit
• Full Power Between -30~+60℃
• Built-in Active PFC Function
• DC OK Relay Contact
• High Efficiency 92% and Low Power Dissipation
• 4 Years Warranty
• Works on DC Input (480~780VDC) also
