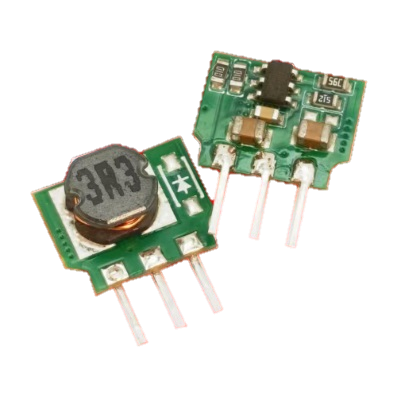

DCK78xxLB-0.5A

DCK78xxLB-0.5A

Wide voltage input, output 500mA, non isolated, Regulated, single output

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2mA
  • Short circuit protection
  • The pins are compatible with the K78xx series
Datasheet

Wide voltage input, output 500mA, non isolated, Regulated, single output

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2mA
  • Short circuit protection
  • The pins are compatible with the K78xx series

Models in Series

ModelPowerInputOutputDatasheet
DCK7803LB-0.5A W24 VDC3.3 VDCDownload
DCK7805LB-0.5A W24 VDC5 VDCDownload
DCK7809LB-0.5A W24 VDC9 VDCDownload
DCK7812LB-0.5A W24 VDC12 VDCDownload
DCK7815LB-0.5A W24 VDC24 VDCDownload
