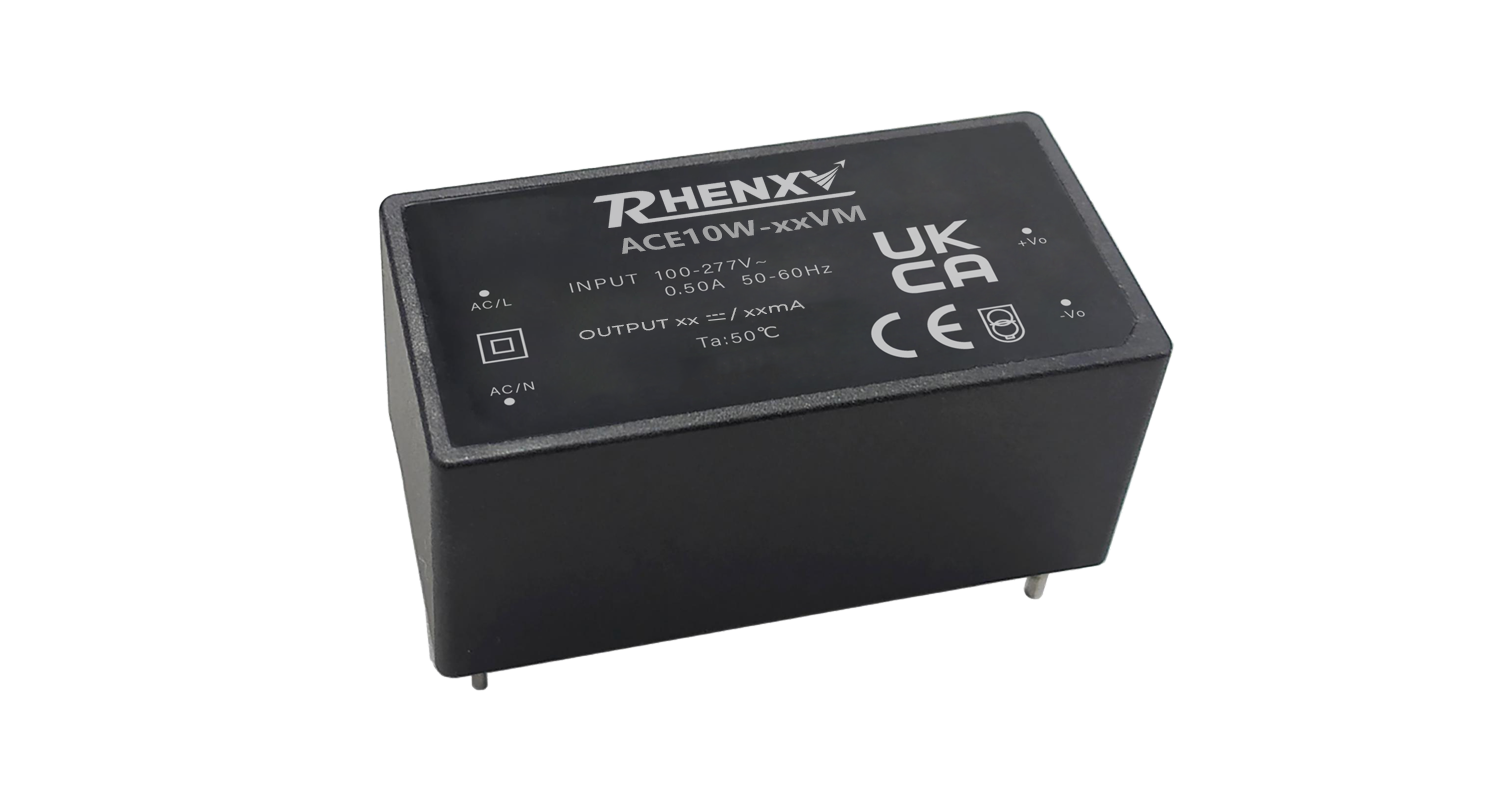

ACE10W-VM

ACE10W-VM

ACE10W-xxVM is a 10W miniature (46.08*25.78*21.7mm) AC-DC module type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305VAC.

  • Universal AC Input/ Full Range
  • No load power consumption<0.1W
  • Wide operating temperature range -30~+85ā„ƒ
  • High efficiency up to 82%
  • Protections: Short circuit/Over load/Over voltage
  • Isolation Class II
  • 3 Years Warranty
Datasheet

ACE10W-xxVM is a 10W miniature (46.08*25.78*21.7mm) AC-DC module type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305VAC.

  • Universal AC Input/ Full Range
  • No load power consumption<0.1W
  • Wide operating temperature range -30~+85ā„ƒ
  • High efficiency up to 82%
  • Protections: Short circuit/Over load/Over voltage
  • Isolation Class II
  • 3 Years Warranty

Models in Series

ModelPowerInputOutputDatasheet
ACE10W-03VM 8.25 W85-305 VAC / 120-430 VDC3 VDCDownload
ACE10W-05VM 10 W85-305 VAC / 120-430 VDC5 VDCDownload
ACE10W-12VM 10.2 W85-305 VAC / 120-430 VDC12 VDCDownload
ACE10W-15VM 10.05 W85-305 VAC / 120-430 VDC15 VDCDownload
ACE10W-24VM 10.08 W85-305 VAC / 120-430 VDC24 VDCDownload
