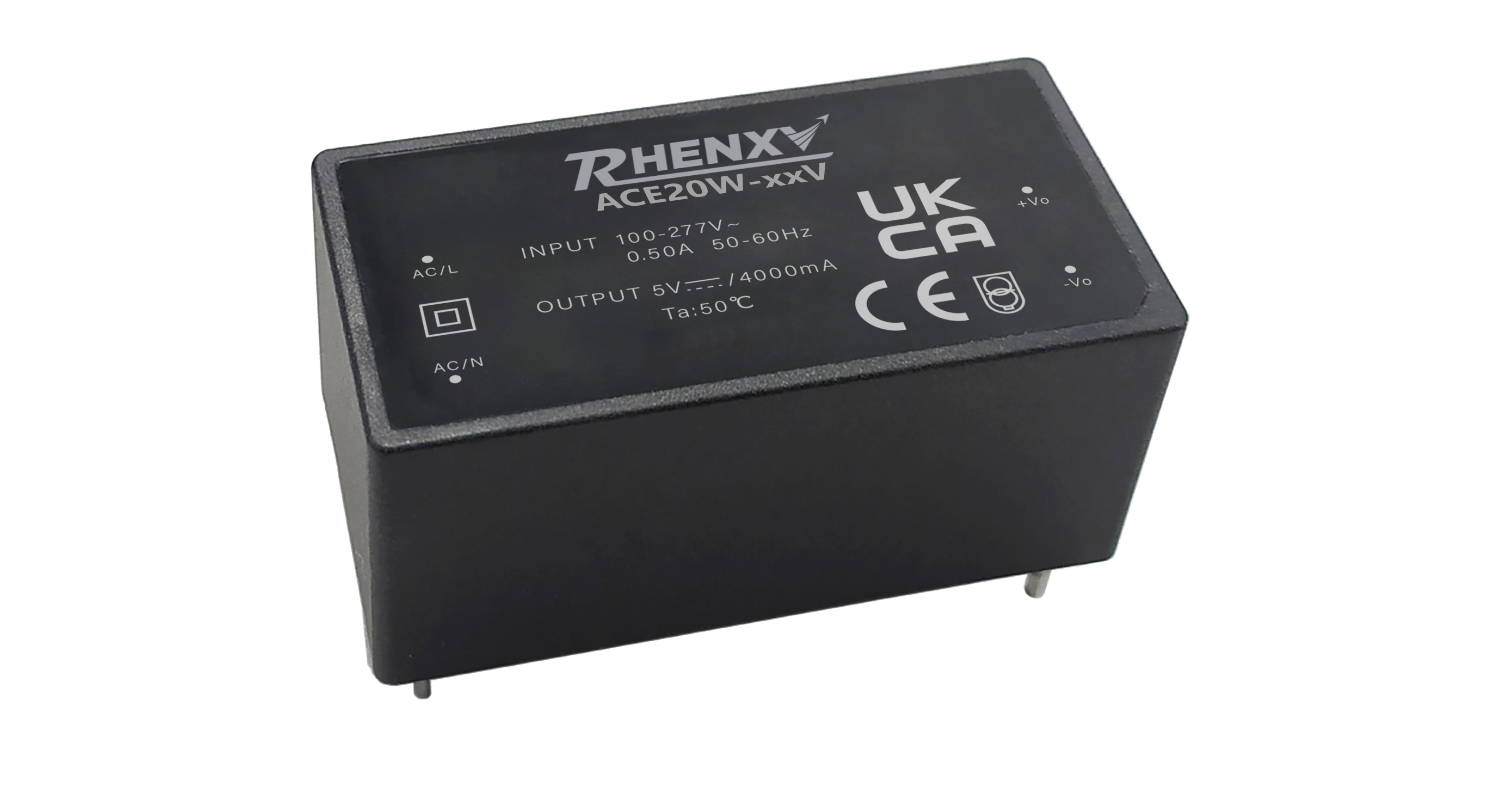

ACE20W-xxV is a 20W miniature (52.6*27.4*24.3mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industriai automation equipments. This product allows the universal input voltage range of 85 305VAC.
ACE20W-xxV is a 20W miniature (52.6*27.4*24.3mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industriai automation equipments. This product allows the universal input voltage range of 85 305VAC.
| Model | Power | Input | Output | Datasheet |
|---|---|---|---|---|
| ACE20W-03V | 14.85 W | 85-305 VAC / 100-430 VDC | 3.3 VDC | Download |
| ACE20W-05V | 20 W | 85-305 VAC / 100-430 VDC | 5 VDC | Download |
| ACE20W-09V | 19.8 W | 85-305 VAC / 100-430 VDC | 9 VDC | Download |
| ACE20W-12V | 20.04 W | 85-305 VAC / 100-430 VDC | 12 VDC | Download |
| ACE20W-15V | 19.95 W | 85-305 VAC / 100-430 VDC | 15 VDC | Download |
| ACE20W-24V | 19.92 W | 85-305 VAC / 100-430 VDC | 24 VDC | Download |
