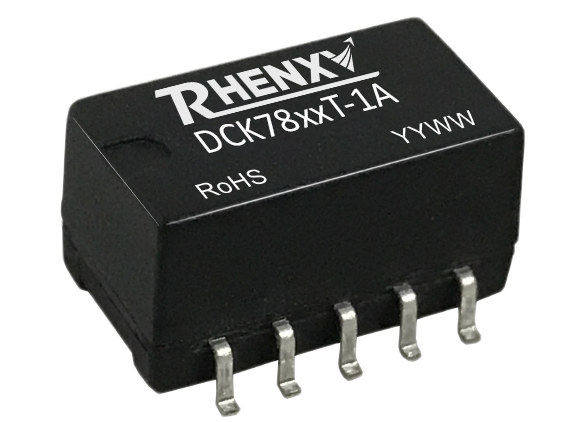

DCK78T-1A

DCK78T-1A

Wide voltage input, output 1000mA, non isolated / stabilized / single output / SMD packaging.

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2MA
  • Ripple as low as 30mVp-p
  • The pins are compatible with the LM78xx series and can be packaged with straight or curved pins
Datasheet

Wide voltage input, output 1000mA, non isolated / stabilized / single output / SMD packaging.

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2MA
  • Ripple as low as 30mVp-p
  • The pins are compatible with the LM78xx series and can be packaged with straight or curved pins

Models in Series

ModelPowerInputOutputDatasheet
DCK7803T-1A W12 VDC3.3 VDCDownload
DCK7805T-1A W12 VDC5 VDCDownload
DCK7809T-1A W12 VDC9 VDCDownload
DCK7812T-1A W24 VDC12 VDCDownload
DCK7815T-1A W24 VDC15 VDCDownload
