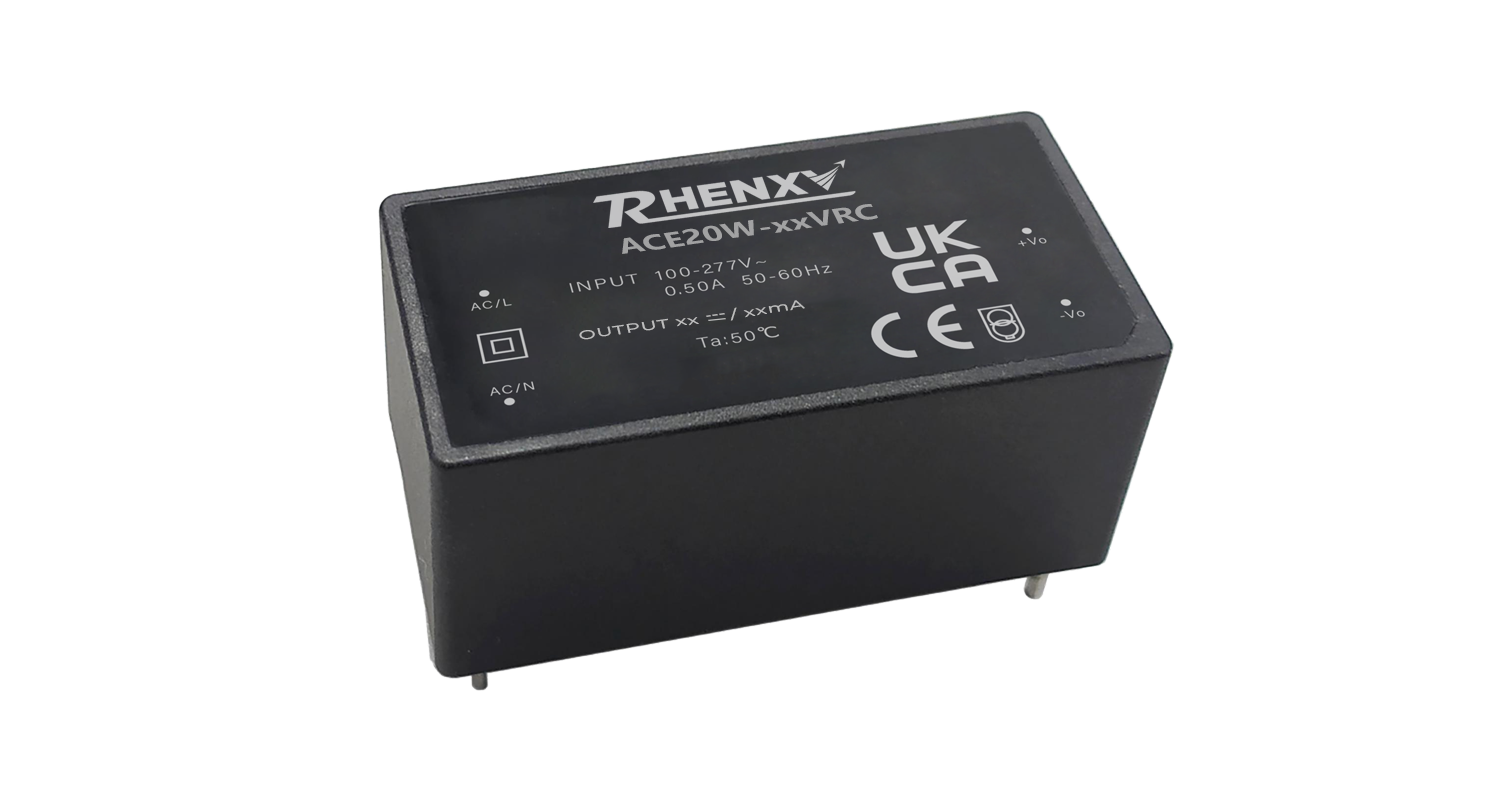

ACE20W-xxVRC series is adopting the full range: 100-277VAC input. The series has extremely low no load power consumption. High efficiency to reduce power loss. The series cost effective, high reliability, operates from -30℃ 85℃. A variety of appearance sizes are available for easy installation and use. These converters offer excellent EMC performance and meet international standards, they are widely used in areas of industrial design, household appliances, communications, testing instruments.
ACE20W-xxVRC series is adopting the full range: 100-277VAC input. The series has extremely low no load power consumption. High efficiency to reduce power loss. The series cost effective, high reliability, operates from -30℃ 85℃. A variety of appearance sizes are available for easy installation and use. These converters offer excellent EMC performance and meet international standards, they are widely used in areas of industrial design, household appliances, communications, testing instruments.
| Model | Power | Input | Output | Datasheet |
|---|---|---|---|---|
| ACE20W-03VRC | 14.85 W | 85-305 VAC / 100-430 VDC | 3.3 VDC | Download |
| ACE20W-05VRC | 20 W | 85-305 VAC / 100-430 VDC | 5 VDC | Download |
| ACE20W-09VRC | 19.8 W | 85-305 VAC / 100-430 VDC | 9 VDC | Download |
| ACE20W-12VRC | 20.04 W | 85-305 VAC / 100-430 VDC | 12 VDC | Download |
| ACE20W-15VRC | 19.95 W | 85-305 VAC / 100-430 VDC | 15 VDC | Download |
| ACE20W-24VRC | 19.92 W | 85-305 VAC / 100-430 VDC | 24 VDC | Download |
